تفاصيل المنتج:
|
| دقة قوة الاختبار: | ± 1 ٪ | قرار النزوح: | 0.01mm |
|---|---|---|---|
| دقة اختبار التشوه: | ± 0.5 ٪ | ماكس السحب مساحة: | 800mm |
| الحد الأقصى للضغط مساحة: | 700mm | مساحة اختبار الانحناء: | 450mm |
| وزن كامل: | 3000 كجم | سرعة الاختبار: | 1 ~ 500 ملم / دقيقة |
| سكتة دماغية: | 400،500،600 ملم | عرض الاختبار: | 40 سم |
| اختبار أبعاد مساحة: | 40 × 40 × 70 سم | نطاق درجة الحرارة: | -40 ℃ ~ 150 ℃ |
| نطاق الرطوبة: | 20 ٪ RH ~ 98 ٪ RH | استقرار التحكم: | ± 2.5 ٪ RH ، ± 1 ℃ |
| معدل الطاقة: | 0.4kw | ||
| إبراز: | High-low temperature tensile testing machine,Universal testing machine with CE ISO,Tensile testing machine with warranty,Universal testing machine with CE ISO,Tensile testing machine with warranty |
||
| Attribute | Value |
|---|---|
| Test force accuracy | ±1% |
| Displacement resolution | 0.01mm |
| Deformation test accuracy | ±0.5% |
| Max drawing space | 800mm |
| Max compressing space | 700mm |
| Bending test branch space | 450 mm |
| Complete weight | 3000kg |
| Certificate | CE ISO |
| Warranty | 12 Months |
| Customized support | OEM, ODM |
| Power | Electronic |

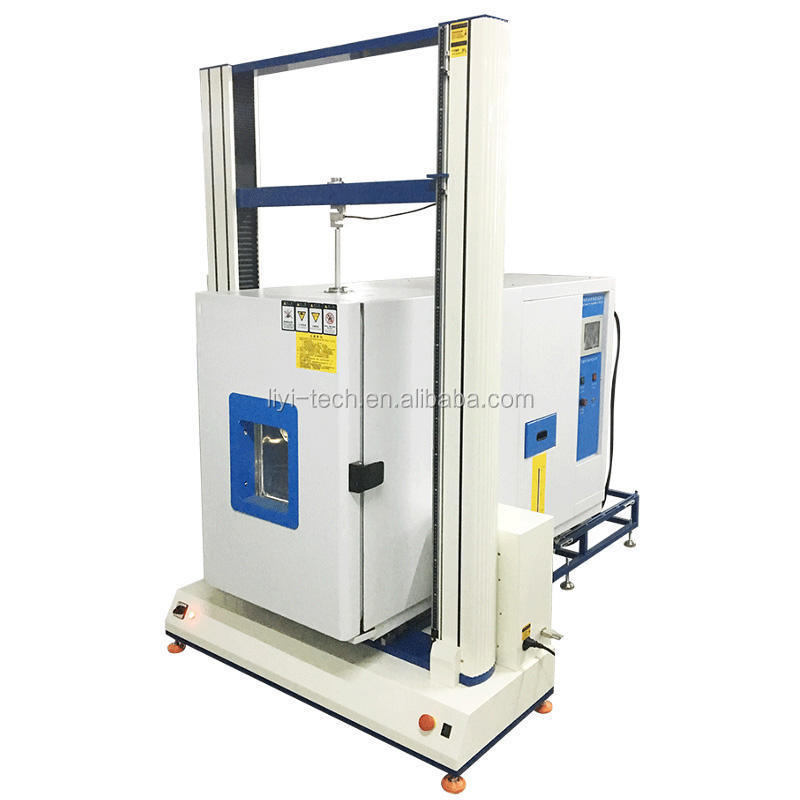

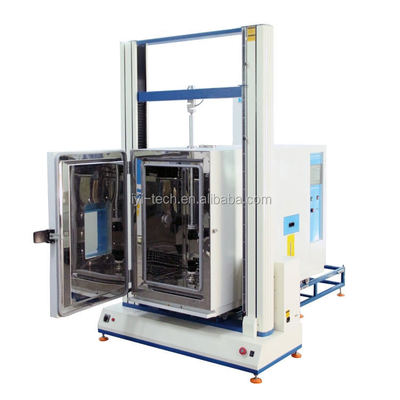

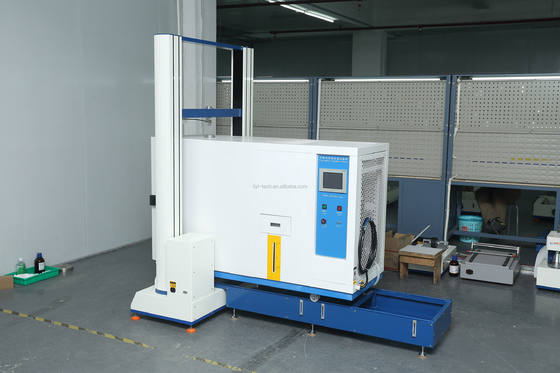

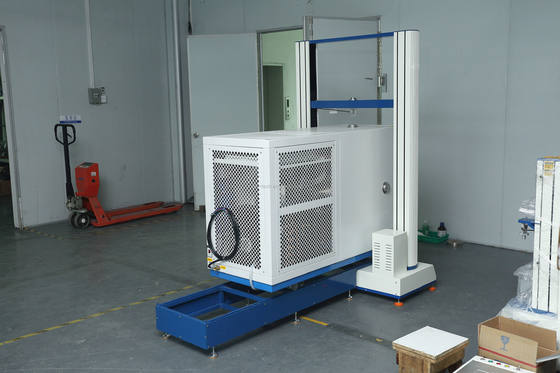

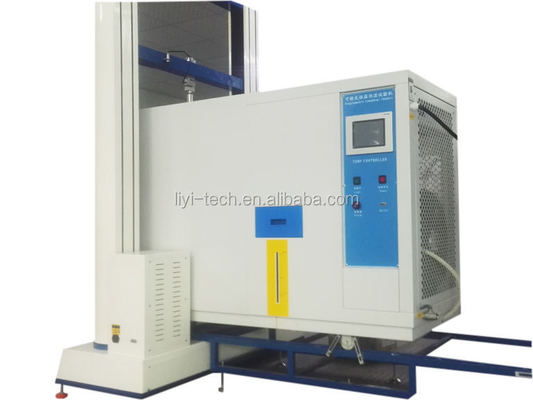

This machine combines high-low temperature testing with peel strength testing capabilities. It eliminates errors caused by environmental changes during testing processes. With different fixtures, it can test 180° and 90° peeling strength, separating force, and other parameters for adhesive materials in high-low temperature environments. The machine can be configured as a programmable temperature and humidity tester based on requirements.
UN38.3, SJ/T11169-1998, SJ/T11170-1998, UL1642-1995, UL2054-1997, QC/T 743-2006, QC/742-2006, QC/T 744-2006, GB/T18287-2000, GB 8897.4-2002, IEC60086-4-2000 and more.
| Capacity | 2,5,10,20,50,100,200,500,1000kg |
|---|---|
| Choosing capacity | 3 to 10 times of specimen damage (g,kg,N,KN,LB) |
| Resolution | 1/2500,000 |
| Accuracy | ≤0.5% |
| Testing speed | 1~500mm/min |
| Stroke | 400,500,600mm (Customizable height) |
| Test width | 40cm (Customizable) |
| Test space | 40×40×70cm (L×W×H) |
| Motor | Panasonic servo motor |
| Drive system | High-precision ball screw |
| Temperature range | -40℃~150℃ |
|---|---|
| Temperature method | Computer P.I.D. automatic control |
| Humidity range | 20%RH~98%RH |
| Control stability | ±2.5%RH, ±1℃ |
| Distribution accuracy | ±3%RH, ±1℃ |
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we produce simulated environmental testers and material testing equipment for various industries.
Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province for Eastern China operations. We serve customers in over 150 countries and regions, committed to helping clients establish quality testing laboratories.
We provide consultative selling service throughout the entire business process:
A: Yes, we are the manufacturer. You're welcome to visit our factory.
A: Our team supports English, Cantonese, and Chinese.
A: Our professional team will provide recommendations based on your testing requirements.
A: Standard delivery time is 10-20 working days after deposit. Urgent orders can be accommodated.
A: Yes, we offer both standard and fully customized machines.
